How to Mount TentBox Securely on Your Car
Share
A roof tent should feel like part of the vehicle, not a heavy item perched on top of it. Knowing how to mount TentBox securely starts well before you lift it onto the roof: the vehicle, roof bars, fixing hardware and final safety checks all have to work together. Get those foundations right and you will have a quieter drive, a safer setup and far less to worry about when the car is parked overnight.
A TentBox is a substantial piece of kit. It needs a properly rated roof-bar system, correct rail positioning and mounting brackets tightened to the manufacturer’s specification. Security upgrades matter too, but they are an addition to a sound installation, never a substitute for one.
Start with your vehicle’s roof load limit
The first number to check is the vehicle manufacturer’s dynamic roof load limit. This is the maximum weight permitted on the roof while the car is moving, and it includes the roof bars, any feet or fitting kit, the TentBox itself and other roof-mounted gear.
Do not confuse dynamic load with static load. A vehicle may have a dynamic rating of 75kg, for example, while supporting considerably more weight when stationary. That is why a correctly specified roof tent can be used for sleeping even though the tent, occupants and bedding together exceed the driving limit. The roof, bars and mounting system still need to be approved for the tent you are fitting.
Check your vehicle handbook, the roof-bar manufacturer’s guidance and your TentBox model instructions. If any of these limits conflict, use the lowest figure. A panoramic roof, flush rails, factory rails and bare-roof fixing points can all affect which bar system is suitable.
Choose roof bars that are rated for the job
Not all roof bars are roof-tent bars. Avoid assuming that a set used for a light roof box, bikes or a pair of skis will be suitable for a tent. The bars must be compatible with your vehicle and carry enough dynamic load once their own weight is accounted for.
The bar profile and spread matter as well. Most roof tents mount across two crossbars using the tent’s underside rails and supplied brackets. Bars should sit at the spacing specified for your TentBox, rather than simply as far apart as your roof allows. Too narrow a spread can concentrate load and allow unnecessary movement; too wide may prevent the mounting rails or brackets from sitting correctly.
Aerodynamic aluminium bars are common, but the key factor is not their shape. It is their vehicle-specific fit, load rating and secure attachment to the roof rails or fixing points. Fit the bars exactly as instructed, including the correct torque settings, end caps and locking covers.
Check the bars before the tent goes on
With the bars fitted, pull each one firmly from side to side and upwards. There should be no sliding, rocking or movement at the feet. Check that clamps are seated evenly and that nothing fouls a sunroof, tailgate or roof aerial.
This is also the time to consider where the tent will open. On many setups, the ladder should deploy to the passenger side, away from live traffic when you stop at the roadside. Your preferred opening direction may affect which way around the tent needs to sit on the bars.
How to mount TentBox securely without rushing the lift
A hard-shell TentBox is awkward and heavy, even when its weight is within the vehicle’s roof limit. Use at least two capable people to lift it. Four people make the job more controlled, particularly with a larger model, a high SUV or a vehicle with a wide roofline.
Prepare the ground first. Park on level, firm ground, apply the handbrake and remove loose items from around the vehicle. Open the package and identify the mounting rails, brackets, bolts, washers and nuts before lifting the tent. It is much easier to solve a missing-part or orientation issue while the tent is still on the ground.
Lift from secure points on the tent base, keeping fingers clear of closing edges, hinges and rails. Do not drag the tent across the bars. Place it gently and centrally, then step back and check its position from the front, rear and both sides.
The tent should be aligned straight with the vehicle, with sensible clearance from the windscreen and tailgate. It does not have to be perfectly centred to the millimetre, but a visibly offset tent can affect clearance, appearance and how evenly the load is carried.
Position the mounting rails and brackets correctly

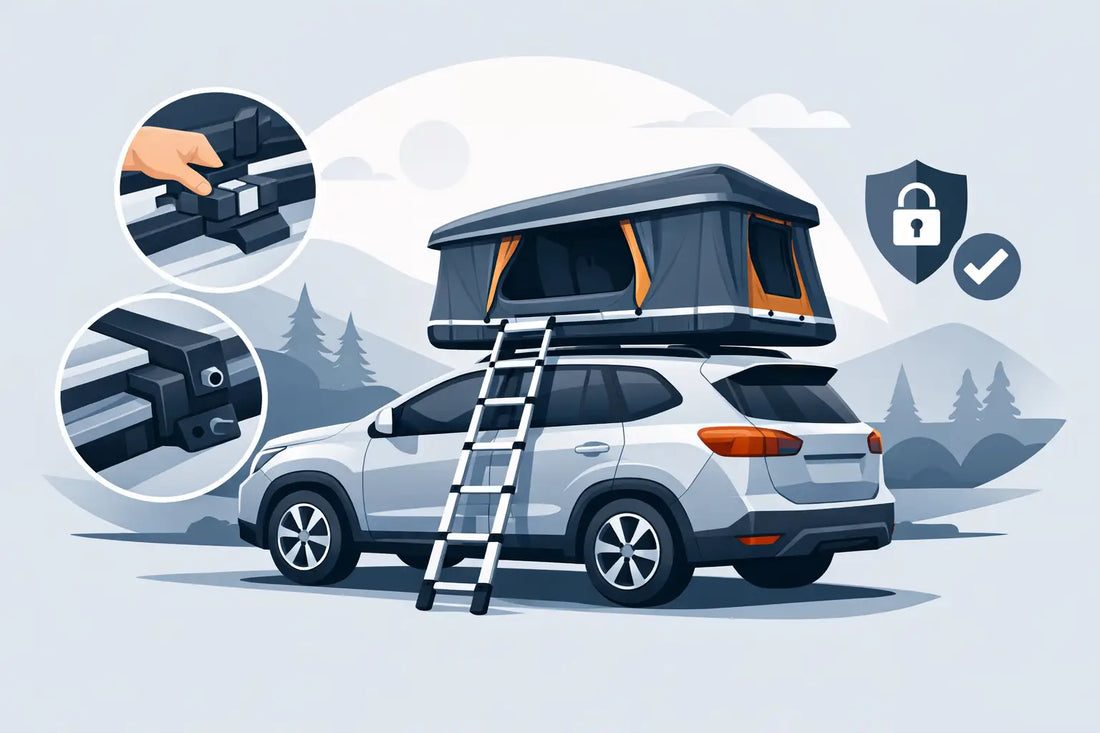

The mounting rails beneath the tent run across the vehicle, sitting perpendicular to the roof bars. Slide them to the positions required by your TentBox instructions, normally so each rail is supported directly by a crossbar. The brackets then clamp the tent rails down around the roof bars.
Fit every supplied bracket and piece of hardware. Do not decide that two fixings are enough because the tent feels stable during fitting. The mounting system is designed to distribute forces from braking, cornering, uneven roads and motorway airflow through all the attachment points.
Start each nut by hand and tighten the fixings gradually, alternating between sides so the load is pulled down evenly. Tightening one corner fully before the others can leave the tent sitting under tension or slightly skewed. Use the specified tool and torque guidance from the tent and bar manufacturers. Overtightening can damage threads, deform components or crush some bar profiles, while undertightening allows movement.
Once tightened, try to move the tent by pushing from each corner. You should not feel it shift independently of the roof bars. A small amount of normal vehicle suspension movement is not the same as tent movement - focus on whether the mounting hardware or rails slide, flex excessively or rattle.
Secure the hardware against theft and tampering
Standard nuts can often be removed with basic tools. That is not ideal when your roof tent may be left on a driveway, outside a hotel or at a trailhead. Tamperproof security nuts or locking nut sets replace accessible standard hardware and make opportunistic removal far more difficult.
Use security hardware that is designed for your specific mounting rails and bracket arrangement. The thread size, nut profile and available clearance need to match. A poorly matched locking nut can be as problematic as an ordinary nut if it cannot tighten correctly or prevents the bracket sitting flush.
For higher-risk parking situations, an alarm and alarm holder can add another layer of deterrence. A loud 113dB alarm is not a physical lock, but it draws attention to interference and can make a thief move on quickly. Deterrent stickers have a role too: visible security measures often discourage the casual attempt before it starts.
Keep the security key or specialist socket somewhere safe but accessible on trips. Losing it can turn a straightforward bar adjustment or tent removal into a much bigger job. It is also worth keeping a record of your roof-bar model, TentBox hardware specification and any replacement fixing sizes in your vehicle documents.
Recheck after your first drive
A fresh installation deserves a short shakedown run. Drive locally first, listening for wind noise, rattles or clunks that were not there before. After 10 to 20 miles, park safely and inspect every mounting point.
It is common for components to settle slightly after their first journey. Check the brackets remain square, nuts are tight to the correct specification and the roof bars have not moved in their feet. Repeat this inspection after a longer motorway run and then include it in your regular vehicle checks.
Before every trip, take a minute for this practical check:
- Confirm all mounting brackets and security nuts are present and tight.
- Check roof bars are secure at their feet, clamps or rail mounts.
- Look for cracks, bent brackets, worn threads or corrosion around the hardware.
- Make sure the TentBox is fully shut, latched and free from trapped fabric or loose straps.
When professional fitting is the sensible option
There is no prize for wrestling a roof tent into place alone. Professional fitting is useful when you have a high vehicle, a complex roof-rail arrangement, new bars to fit or simply want a second pair of experienced eyes on the setup. It can also save time if you are collecting a tent ahead of a trip and need it installed properly first time.
Roof Tent Security offers mobile TentBox fitting nationwide across the UK, which is particularly useful when lifting help or suitable workspace is limited. Whether you fit it yourself or use a specialist, ask for the key details: bar suitability, hardware positioning, torque guidance and how to carry out future checks.
A securely mounted TentBox should fade into the background once the journey starts. Take the time to get the foundations right, protect the mounting hardware from tampering and inspect it routinely. Then you can put your attention where it belongs: choosing the next place to stop for the night.
